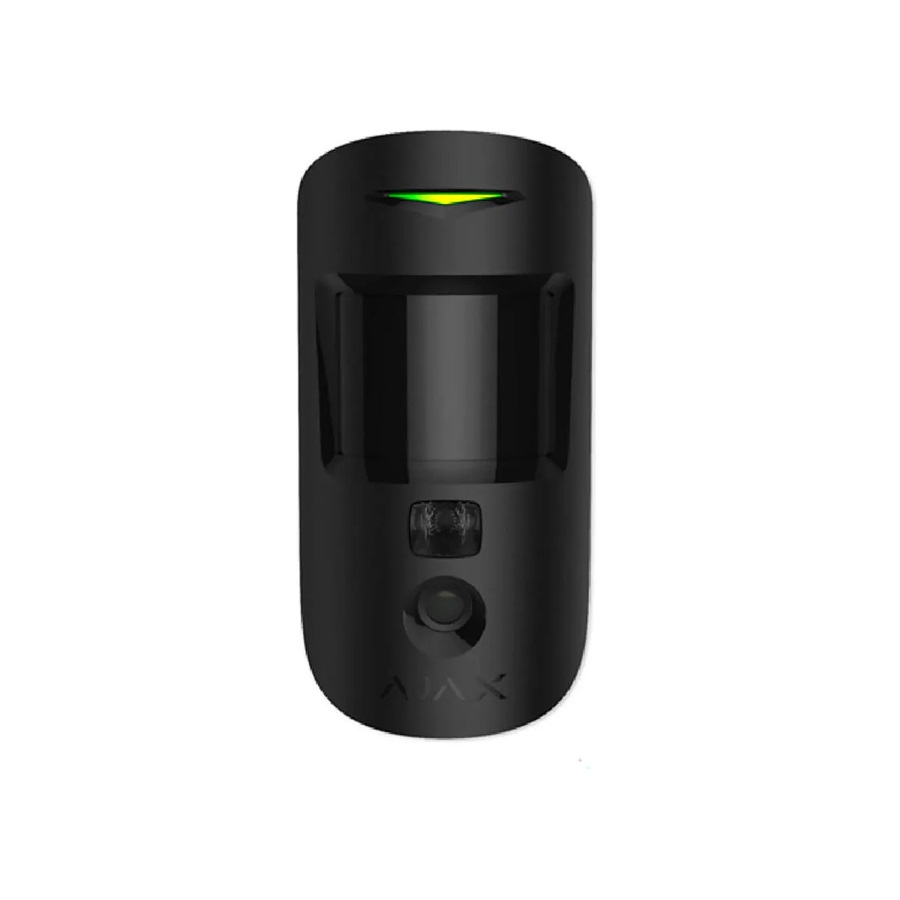

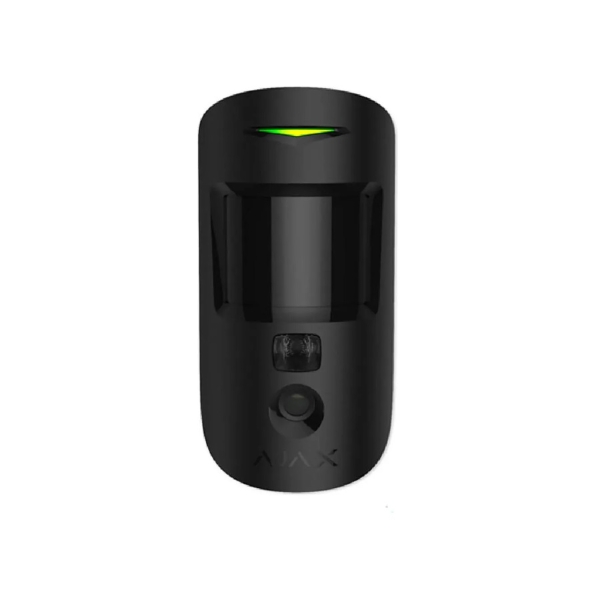

Ajax MotionCam, black. AJMCBLA

Ajax MotionCam, black.

• Motion sensor with camera
• Instantly sends animated photo series
• IR backlight for night images
• Pet-immune: 20 kg. / 50 cm.
• Intuitive and easy pairing and installation
• Compatible with Hub 2 / Hub 2 Plus

PRINCIPLE OF OPERATION
With the Ajax motion sensor with camera, you are notified of an intrusion immediately. An animated photo series follows the motion alarm for an assessment of the situation.

FEATURES
The detector with camera uses two specialized radio protocols at the same time: Jeweller for sending instant alarms and Wings for fast image delivery. You receive the first snapshot of the event within 9 seconds after motion is detected. As usual, the alarm message arrives in a split second, even if the signal is unstable.

INSTALLATION AND SETUP
The motion detector with camera connects to the Ajax system with a few simple clicks.
Open the Ajax app, scan the QR code and assign the detector to a room.
Mount the unit on a wall and make sure that there is nothing blocking the viewing angle.

The unit is ready for assembly and installation as soon as it is unpacked: The battery is already installed and it is therefore not necessary to disassemble the detector.
The detector is mounted on an eyepiece, with the included SmartBracket bracket.

TECHNICAL SPECIFICATIONS:
• Detector type: Wireless
• Installation: Indoor
• Compatibility: Only compatible with Hub 2 and Hub 2 Plus
• Camera viewing angle: 90°
• Sensor element: PIR sensor
• Alarm signal delivery time: 0.15 s
• Motion detection distance: Up to 12 m
• Detection angles: Horizontal - 88.5 °, Vertical - 80 °
• Motion detection time: From 0.3 to 2 m / s
• Sensitivity: Adjustable, 3 levels
• Recommended installation height: 2.4 m
• Pet immunity: Weight - up to 20 kg, Height - up to 50 cm
• Power supply: Battery: 2x CR123A battery, 3 V.
• Battery life: Up to 4 years
• Operating temperature range: From -10 ° C to + 40 ° C
• Dimensions: 135 × 70 × 60 mm
• Weight: 167 g.

PACKAGE INCLUDES:
• MotionCam motion detector with camera
• SmartBracket mounting bracket
• CR123A battery x 2 (pre-installed)
• Installation kit
• User manual
