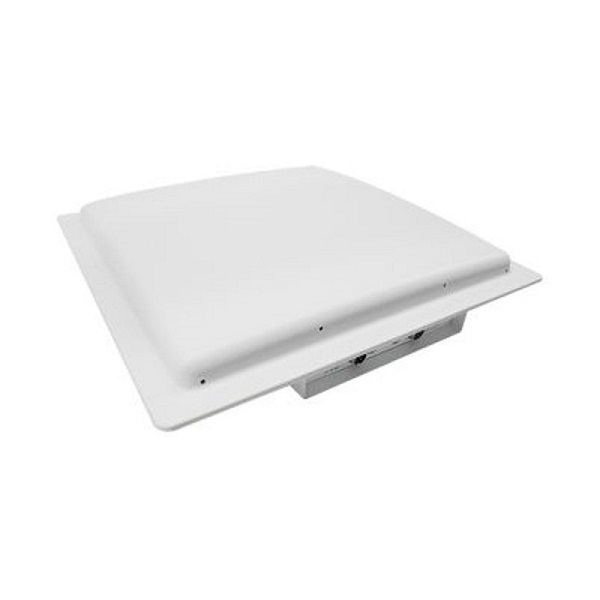

RFID reader with 15 m range, RS232, RS485, Wiegand 26/34, 4G LTE, Wifi, Ethernet option UHF. RFID4865

RFID reader with 15 m range, RS232, RS485, Wiegand 26/34, 4G LTE, Wifi, Ethernet option UHF.
Availability: In stock
Ship to
Shipping Method
Estimated Delivery
No shipping options
Call for pricing

RFID reader with 15 m range, serial, LAN, For passive UHF tags - out - 865MHz

Reading is controlled via software commands.

RFID4865 is an RFID reader for passive tags (without batteries). The range is up to 15 meters and RFID4865 can therefore be used for purposes such as parking garages, intelligent weighing, warehouses, logistics management, asset management, production, line management, etc.

902-928Mhz FCC, 866-868Mhz CE, equipped with 12dBi linear antenna
EPC Class 1 Gen 2(ISO18000-6C)
From 0 ~ 15 Meter reading distance (depending on the environment)
From 0 ~ 5 meters writing Range (depending on the environment)
Software: Linux OS, Indy R2000 RFID Chip, fast and accurate reading rate
RS232 interface
Ethernet connection
PoE optional
Dimensions: 445mm×445mm×78mm (L×W×H)
OPTIONS: RS485, Wiegand 26/34, 4G LTE and WiFi

Humidity: 5% ~ 95% (non-condensing)

Connection: RS-232, 10M/100M Ethernet interfaces Optional Interfaces RS-485, Wiegand 26/34 Optional Wireless Module 4G LTE or 802.11 WIFI module Optional I/O

Indicators: Buzzer and LED (Power, Antenna, Reading/Writing)

Frequency: 902 - 928MHz, 865 - 868MHz, RF band customized (optional) Frequency Hopping FHSS or Fixed Frequency Power Output +20dBm ~ +30dBm@50Ω load, 1dBm each step

Antenna: Built-in 12dBi linear polarization antenna

IP-Density: IP65

Supply voltage: DC 12V Input, PoE optional Power Assumption 2W(Standby), 10W(Working)

Digital I/O: 2-channel Relay Output, 2-channel Trigger Input, 2-channel level Output (optional)

Software: API(C++, C#) development kit (can be customized) Tag Operation Tag Protocol EPC Class 1 Gen 2(ISO18000-6C)

Working temperature: -40℃ ~ +60℃

Weight: 3.47kg

Distance: Reading 0~15m / Writing 0~5m
